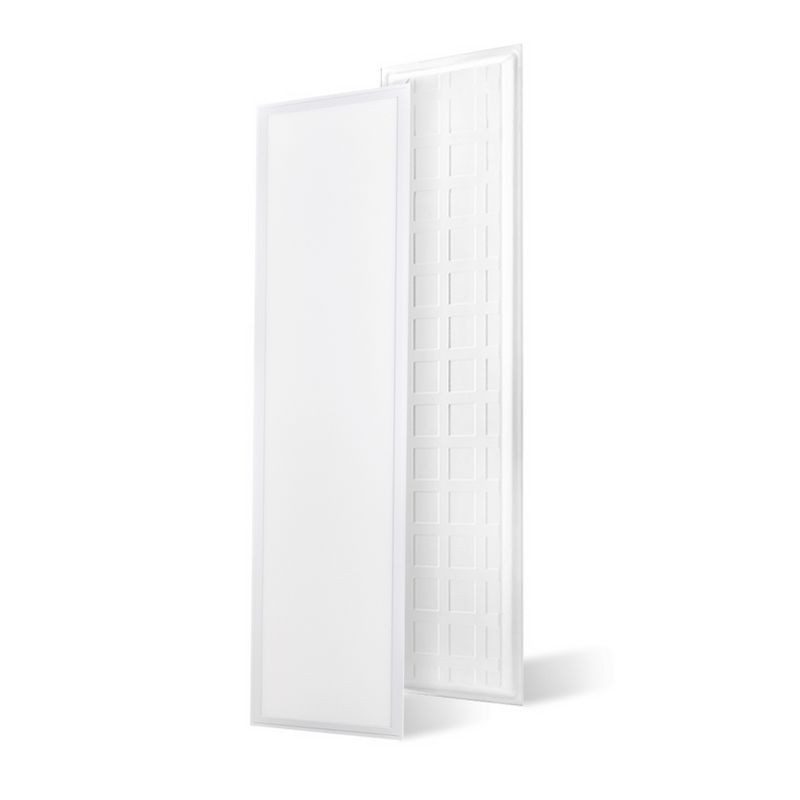

Asalite ECO LED Panel BackLit 120x30cm 30W 4000K (3200 lumens)

Article No.: ASAL0274
31.59 EUR/pcs
In stock
B2B Register for resale prices
We offer a 2 years manufacturer's warranty for the product.
For delivery offer please contact our company

Have a question?

Our colleague is at your disposal.

@

asalite.unas.hu
Asalite ECO LED Panel BackLit 120x30cm 30W 4000K (3200 lumens)
Article No.: ASAL0274
31.59 EUR/pcs
In stock
B2B Register for resale prices

Info

Power
30 W
Socket
AC
Luminosity
3 200 lumen
Colour temperature
4 000 K
Dimmable
no
IP protection
IP 20
Dimension
1195 x 295 x 30 mm
Power grid
AC 220-240 V
Frequency
50/60 Hz
Lifetime
25 000 hours
On/Off Cycles
12 500
Shade colour
opal
Technology
SMD LED
Product form
rectangle
Product material
metal/plastic
Product colour
white
Beam angle
120 °
Luminous efficacy
107 lumen/watt
Colour rendering factor (Ra)
>80
Power factor (Pf)
>0,9
UGR
22
Operating temperature
-20 °C- +40 °C
Product weight
2 160 g
Energy class
F
Warranty
2 years
Packaging unit
1pcs, 6pcs/carton
EAN code
5999565665722
Item code
ASAL0274

Details

Asalite ECO LED Panels BackLit thanks to the high quality Led-chips are a long-term solution for lighting up interiors steadily, aesthetically and also it is also pleasing to the eye.

The Asalite LED Panel of 30W power provide a brightness of 3200 lumens at the 120beam angle. The luminous efficacy is 107 lumens/watt. It can be easily installed by the quick switch.

The "F" energyclass rating panels offer not onlylow energy consumption, but offer it long lifetime of up to 25000 working hours. The manufacturer ensures a 2-year warranty.

The Asalite 120x30cm LED panel can be installed in a suspended ceiling, in a lifting frame and with a suspension solution (wire cable) in a practicably way.

They can be installed in the plane of the plasterboard with the help of a spring fastener, and their hanging can be done with the help of a hanging set. It is possible to install in a suspended ceiling with the help of a sliding frame.

The product consists of an aluminium frame, acrylic diffuser sheet, aluminium PCB + 2835 LED Chips + Lenses, basic metal trays.

The aluminium frame ensures proper heat dissipation; thus, it can avoid overheating of the LED Chips. Thanks to the acrylic diffuser sheet, the product material does not turn yellow during usage, thus it provides a steady brightness.

The product is suitable for everyday use, they are recommended for the lighting of hotels, schools, offices, hospitals, meeting rooms and public institutions.

The LED panels can be installed only by a professional in a voltage free state!



Documents to download

Declaration of conformity Installation manual Technical data sheet
